SDC-ECO-1000 / 2000 / 3000

Dust Collector

SDC-ECO-1000

SDC-ECO-1000

SDC-ECO-1000

SDC-ECO-1000

SDC-ECO-2000

SDC-ECO-2000

SDC-ECO-3000

SDC-ECO-3000

SDC-ECO-1000,2000,3000

SDC-ECO-1000,2000,3000

SDC-ECO-1000,2000,3000

SDC-ECO-1000,2000,3000

Dust Collector(Drawer Type)

PATENT PENDING

  • Plant Efficiency Improvement

  • OSHA & EU-OSHA Compliance

  • HEPA module for choice

FEATURES

2-Stage Filtrations

Stage 1. >

Pre & After Dust Drawer

Trapping large welding waste to protect the filter media.

Stage 2. >

SDC-ECO-1000 / 3000 : Cartridge Filter(1)

Being coated with TEFLON, featuring 99% of 1 micron filter efficiency.

SDC-ECO-2000 : Cartridge Filter(2)

Being coated with TEFLON, featuring 99% of 1 micron filter efficiency.

Revolutionary Characteristics

 >

1. Manual Air Pulse Jet Cartridge Cleaning.

 >

2. Cartridge: 99% of 1 Micron filter efficiency.

 >

3. Quick Access Door for maintenance.

 >

4. Heavy gauge powder coated steel.

Optional Accessories

 > Arm Base

 > Wall Bracket

 > HEPA Module

 > Spark Trap



SPECIFICATIONS

Dust Collector(Drawer Type)

 We reserve the right to make changes in SmartVent products in order to improve design or performance characteristics without further notice.



HOW IT WORKS

Dust Collector(Drawer Type)

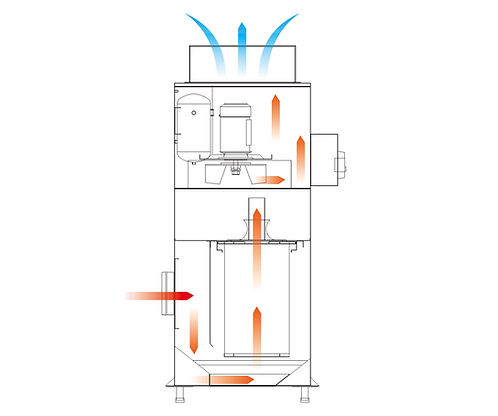

SDC-ECO-1000 Airflow Directions



STEP 1.

Air extracted via Inlet 1 , waste and large particles being falling down onto the dust collecting drawer2

STEP 2.

Airflow being conducted upwards to Cartridge Filter 3 for screening fine dusts.

STEP 3.

Clean air exhausted out by Blower 4via top vent 5

APPLICATIONS

Welding Fumes

press to zoom

Soldering Fumes

press to zoom

Dry Smoke & Powders

press to zoom

Welding Fumes

press to zoom
1/6
