Portable Air Cleaner
C type-Odor Application
US-PAT Pending No.: 11/751897
TW-PAT NO: M317289
-
Improve Productivity
-
OSHA&EU-OSHA Compliance
-
Adjustable Inlet
-
Filter Area 440 s.f./37m²
(The air of space circulate six times per hour.)

FEATURES
Stainless Net
85% Pre-filter
Pre-filter
HEPA
Activated Carbon Filter
5-Stage Filtrations
Stage 1. >
Stainless Net
Capturing larger particles
Stage 2. >
85% Pre-filter
Filtered 1-2 micron particle in order to extend the life of Pre-filter and HEPA
Stage 3. >
Pre-filter
Filtered by up to 85% of micron particles
Stage 4. >
HEPA
Noxious fume filtered by up to 99.97%HEPA of 0.3 micron particles as the compliance to OSHA&EU-OSHA
Stage 5. >
Activated Carbon Filter
Filtered noxiou fume and smoke.
Features
SPECIFICATIONS

We reserve the right to make changes in SmartVent products in order to improve design or performance characteristics without further notice.
SPECIFICATIONS

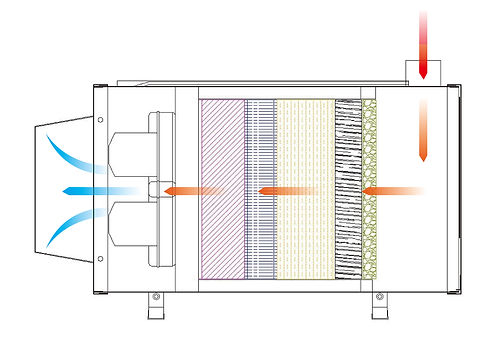

HOW IT WORKS

FE-2010-SC Airflow Directions
HOW IT WORKS

STEP 1.
Air and fume extracted via inlet 1.

STEP 2.
The air pass through stainless net for seizing larger particles. 2.

STEP 3.
Conducted through 85% pre-filter 3 for small particales capturing and oil absorption.

STEP 4.
Conducted through pre-filter 4 filterd by up to 85% of 1 micron particles.

STEP 5.
Conducted through 99.97% HEPA 5 of 0.3 micrin particles as the compliance to OSHA&EU-OSHA.

STEP 6.
Before exhausted out to the work place, noxious fume filtered by Activated Carbon filter 6.

APPLICATIONS

Remove Odor
Dust Collection
Remove Odor
1/2

APPLICATIONS
